Feature
• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
• Power: VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W
• Auto-senses digital or analog reception
• 4000 channels + VFO; 10,000 talk groups with 200,000 digital contacts
• Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
• Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
• Fixed and defined CTCSS/DCS encode and decode
• DTMF/2TONE/5TONE encode and decode
• Four different Tone-pluse frequencies
• Individual/Group/All call
• Support Contact Manager
• Display the Caller ID and name
• SMS via keyboard, One touch call/text
• Zone selection; Ranging function between radios with GPS
• ANI function and PTT ID; VOX; Digital Recording and Play
• Roaming function; Talker alias function
• IP connect to Motorola Repeater
• Emergency alarm (with GPS data transmission)
• Either Voice Recording 500 hours(optional) or BT (optional)
• GPS with APRS location reporting(optional)
• AES256 Digital encrytion(optional); Duplexer Talk(W/earpiece) (optional)
• Earphone: KENWOOD connector; Waterproof: IP54
• Battery: 3100mAh Li-ion thick battery (optional) 2100mAh Polymer filmy battery
• Power: VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W
• Auto-senses digital or analog reception
• 4000 channels + VFO; 10,000 talk groups with 200,000 digital contacts
• Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
• Bandwidth: 12.5K/25K (Analog); 12.5K (DMR)
• Fixed and defined CTCSS/DCS encode and decode
• DTMF/2TONE/5TONE encode and decode
• Four different Tone-pluse frequencies
• Individual/Group/All call
• Support Contact Manager
• Display the Caller ID and name
• SMS via keyboard, One touch call/text
• Zone selection; Ranging function between radios with GPS
• ANI function and PTT ID; VOX; Digital Recording and Play
• Roaming function; Talker alias function
• IP connect to Motorola Repeater
• Emergency alarm (with GPS data transmission)
• Either Voice Recording 500 hours(optional) or BT (optional)
• GPS with APRS location reporting(optional)
• AES256 Digital encrytion(optional); Duplexer Talk(W/earpiece) (optional)
• Earphone: KENWOOD connector; Waterproof: IP54
• Battery: 3100mAh Li-ion thick battery (optional) 2100mAh Polymer filmy battery
Specification
| General | |
| Frequency Range | 136-174MHz (V) , 400-480MHz (U) |
| Channel Capacity | 4000 channels |
| Channel Spacing | 25KHz (Wide Band)Â Â Â 12.5KHz (Narrow Band) |
| Phase-locked Step | 5KHz, 6.25KHz |
| Operating Voltage | 7.4V DC ±20% (2100mAh) |
| Frequency Stability | ±2.0ppm |
| Operating Temperature | -20℃~ +55℃ |
| Size | 129×61×39mm (with battery pack) |
| Weight | 282g (with battery pack, antenna) |
| Transmitting Part | |
| Power Output | VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W |
| Modulation limit | ±5.0KHz@25KHz (Wide Band)    ±2.5KHz@12.5KHz (Narrow Band) |
| Adjacent Channel Power | ≥70dB (Wide Band)      ≥60dB (Narrow Band) |
| Hum & Noise | ≥40dB (Wide Band)       ≥36dB (Narrow Band) |
| Spurious Emission | ≤-36dB (Wide Band)      ≤-36dB (Narrow Band) |
| 4FSK Digital Modulation | 12.5KHz(data)7K60FXDÂ Â Â Â Â Â 12.5KHz(data+voice)7K60FXE |
| Audio Distortion | ≤5% |
| Error rate | ≤3% |
| Receiving Part | |
| Sensitivity (12dB SINAD) | ≤0.25μV (Wide Band)  ≤0.35μV (Narrow Band) |
| Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%)Â Â Â Â Â Â Â 0.7uV/-110dBm (BER 1%) |
| Adjacent Channel Selectivity | ≥70dB (Wide Band)      ≥60dB (Narrow Band) |
| Spurious Emission | ≤-57dB (Wide Band)     ≤-57dB (Narrow Band) |
| Spurious Rejection | ≥70dB (Wide Band)        ≥70dB (Narrow Band) |
| Blocking | 84db |
| Hum & Noise | ≥45dB (Wide Band)       ≥40dB (Narrow Band) |
| Audio Distortion | ≤5% |
| Audio Power Output | 1000mW/16Ω |

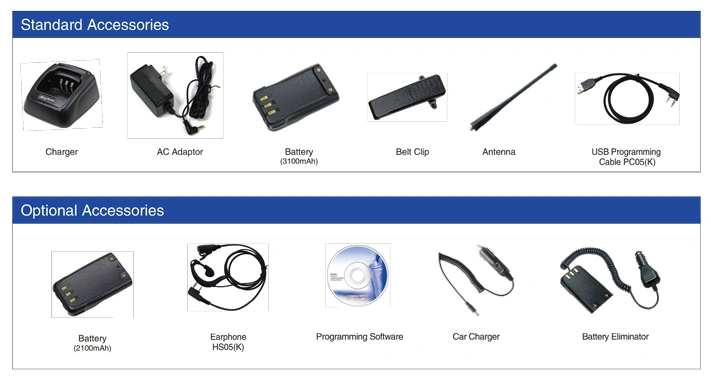

Accessories
